Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.

Features

1. Welded steel T type structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

2. Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

3. Large power 4.5kw China air cooling spindle which is with stable performance and high torque, matched with high-performance Frequency Inverter.

4. Yaskawa Japan 750W servo motor and driver for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

5. Helical gears Pinion with Racks type transmission for X and Y axis, higher running speed and efficiency,saving cost. Z- axis with precision ball screw, high precision and more durable.

6.DSP offline control system with USB interface which is completely off from Computer. More Humanizeddesign with Simple and Convenient Handle type operation.With per-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle start up and stop automatically.

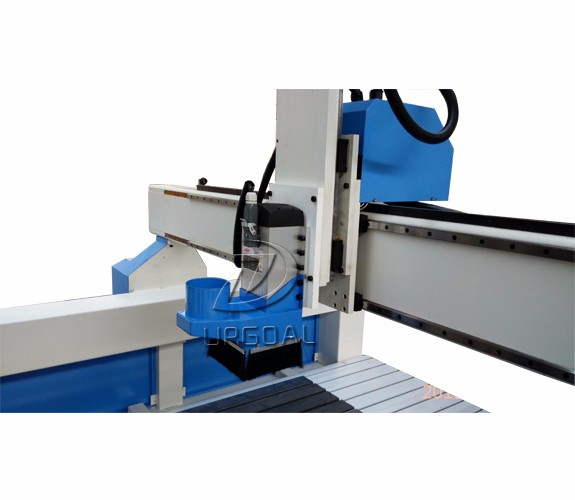

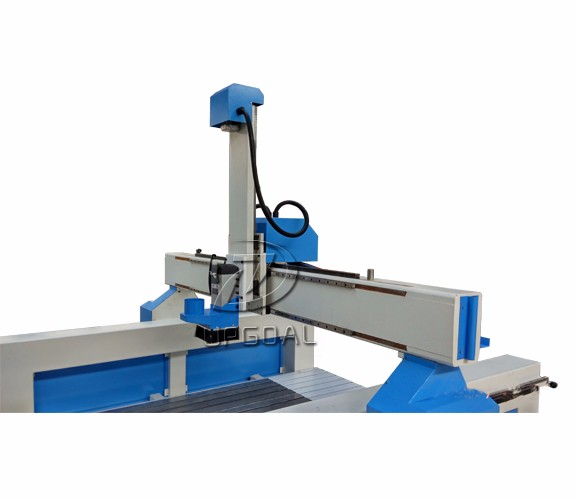

7. Specially designed stable High 400 Z-axis feeding height, more more thickness materials engraving & cutting.

8. Semi-auto lubrication system more convenient for maintenance.

10. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

11. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.
